XT-1 Tonnage Load Module

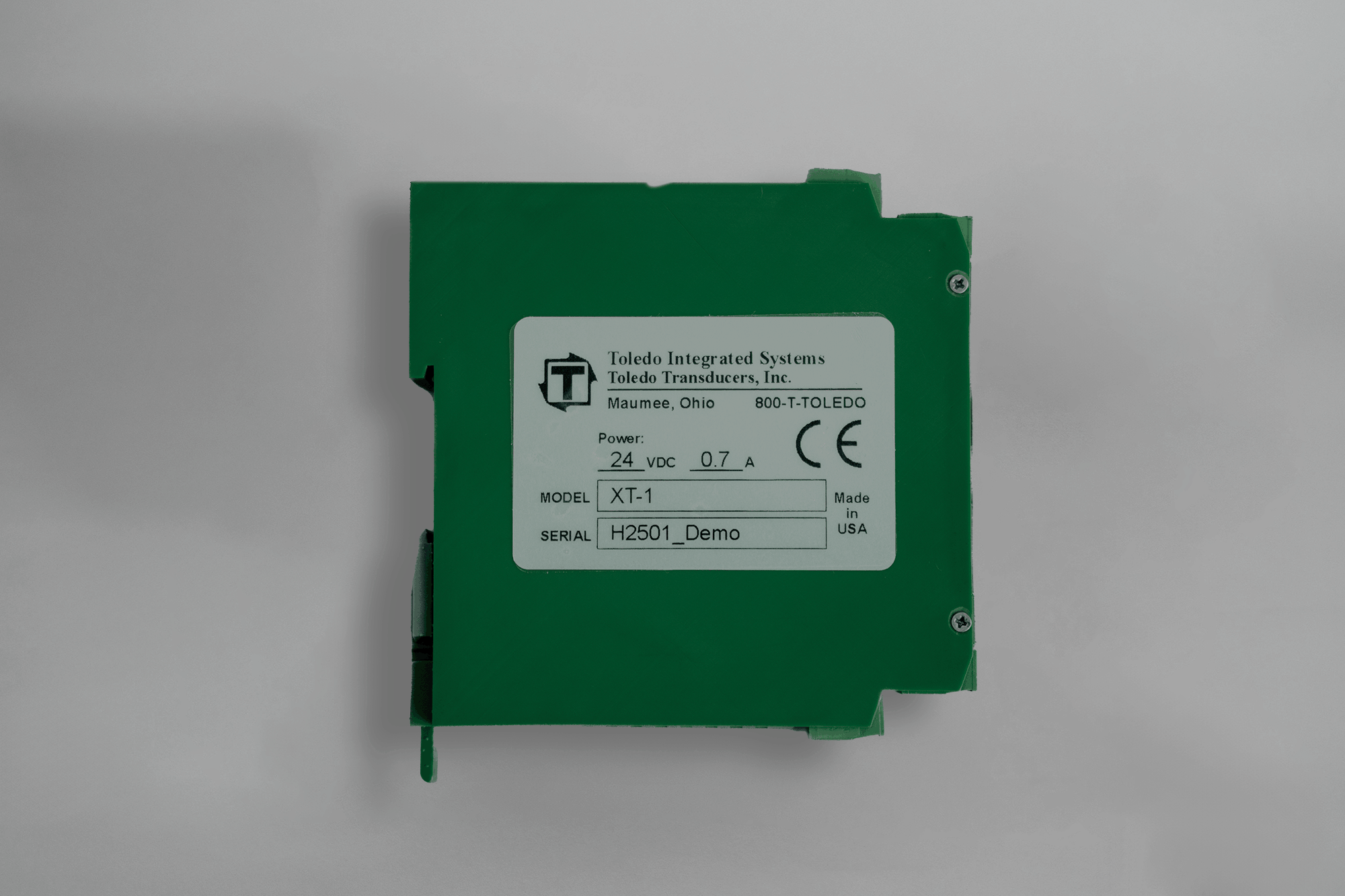

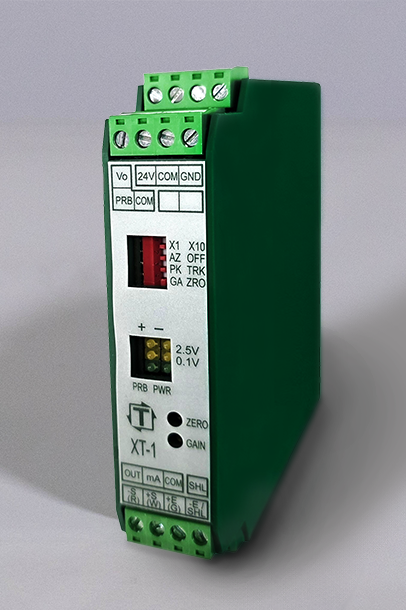

The XT-1 tonnage load module is designed for critical force measurement applications where accuracy, extreme stability, and dependable noise rejection is essential. It is equipped with an LED voltage indicator for easy setup and diagnostic. The XT-1 is DIN rail mountable and is designed to interface with PLC analog cards and human machine interfaces (HMI).
Key Features
Dual Output
Provides both 0–10V voltage and 0–20mA current outputs simultaneously.
Peak Hold Function
Controlled by an external probe signal for accurate load measurement.
Auto-Zero Function
Automatically compensates for zeroing errors caused by environmental changes such as temperature and humidity.
LED Indicator
Simplifies setup and diagnostics with clear visual feedback.
Built-In Calibration Shunt
Includes a 1 MΩ shunt resistor; optional external shunt resistor interface available.
Selectable Gain
Choose between x1 or x10 gain ranges to match strong or weak sensor signals.
Easy Installation
Plug-in connector design allows for quick wiring and setup.
DIN Rail Mount
Simplifies system integration and saves panel space.
XT-1
| Transducers | Full bridge, 120 to 1000 ohms. |
| Sensor Excitation | Built in +12VDC at 500mA max. |
| Balance Range | +/- 1mV/V of sensor imbalance |
| Gain Ranges | Low range = x100 to x1,100 adjustable High range = x1,000 to x11,00 adjustable |
| Calibration Shunt | Built-in 1 mega ohm (.1%), or external custom shunt optional. |
| Output Range - Voltage |
Peak mode = 0 to 10VDC Track mode = -10 to +10VDC |
| Output Range - Current |
Peak Mode = 0 to 20mA Track Mode = -20 to +20mA |
| Circuit Inaccuracy | +/- .1% of full scale max. |
| Circuit Non-linearity |
+/- .02% of full scale max. |
| Auto Zero | Time constant = 10 seconds. DIP switch enabled. |
| Frequency Response |
DC to 5,000 Hz |
| Speed Limit | 2,000 SPM max. |
| Operating Temperature |
-4 to 158 degree F, or -20 to 70 degree C |
| Indicator | LED voltage indicator for setup and diagnostic |
| Peak Hold | Controlled by external probe signal. |
| Probe Connection | Accept 24VDC signal from digital I/O output. 24VDC out to work with solid state or dry contact relay. |
| Input Power | 24VDC at 0.7A max. Automatic resettable fuse. |
| Mounting | Standard DIN Rail mount |
