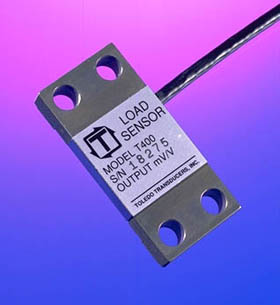

The T400 is a tough and reliable bonded strain gauge sensor. When it is properly affixed to an operating machine, it provides an electrical signal proportional to the load. Toledo Monitors and Modules digitally display the tonnage information as a calibrated value. It measures tension or compression and in tons or pounds. The sensor can be installed on weld pads or by drilling and tapping. Hardware for both methods is included in the sensor kits. A Micro size is also available.
PM1 Kit: (1) T400 sensor with 35' cable; mounting fixtures & hardware, typically used with special machinery or applications.
PM2 Kit: (2) T400 sensors with 35' cables; mounting fixtures & hardware, typically used with c-frame type presses.
PM4 Kit: (4) T400 sensors with (1) 20', (2) 35' & (1) 50' cables; mounting fixtures & hardware, typically used with straight-side presses.
|Quick and easy installation|
|Measure tension or compression|
|Accurately measures in tons or pounds|
|Used on all types of presses|
|High output strain gauge based design|
|A Micro size also available|
|Used in all Toledo Monitoring Systems|
|Hole Centers||.572"x1.750" (for 1/4-28 socket head screw)|
|Excitation Voltage, Typical||10 VDC or AC rms|
|Excitation Voltage, Maximum||15 VDC or AC rms|
Effect on Output
|0.02% of load/Deg. Fahrenheit|
|Rated Output with
Weld Pads, Typical
|1mV/V at 400 micro-inches/inch|
|± 0.10 mV/V|
|Construction||17-4 PH stainless steel|
|Cable||4 conductor, shielded, oil resistant, polyurethane jacket|
|Dimensions||1.00 "||2.19 "||0.25 "|
