HERE AT TOLEDO INTEGRATED SYSTEMS...

We custom design load cells & sensors for a variety of applications.

Our concentration is on tension and compression forces, which are used in a large array of industries. Below is a list of some special load cells that we design and manufacture. Please contact us for information on our custom design load cell services. After all, why try to make someone's load cell fit your operation when you can have one designed specifically for your application? We are A2LA accredited. Inquire about our calibrations today!

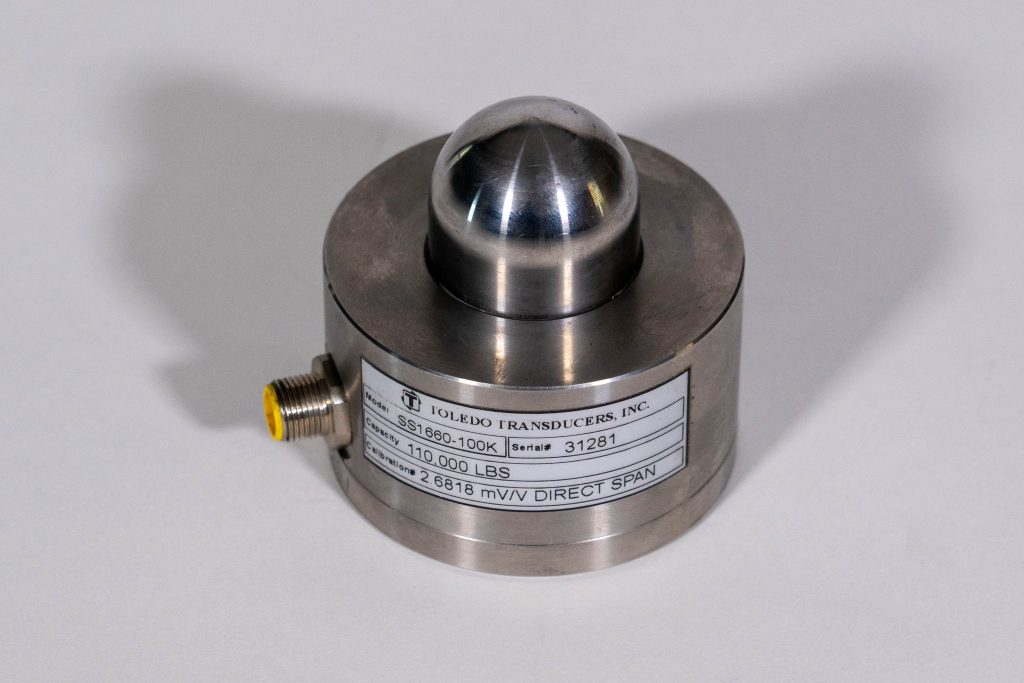

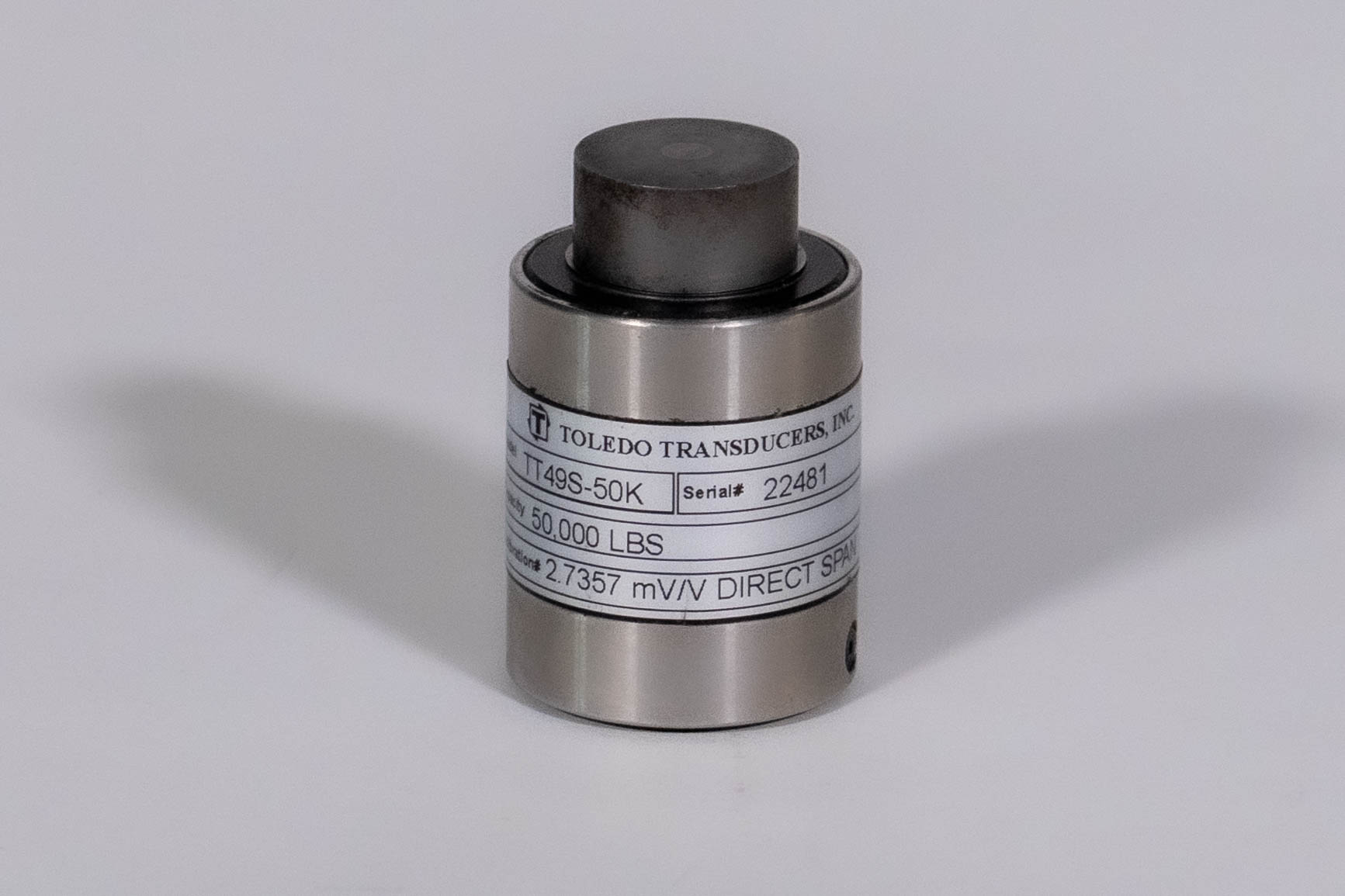

Load Cells

We provide hundreds of load cell configurations. Below is a list of some special load cells that we design and manufacture. These can be tailored to specific operational and configuration applications. We are A2LA-accredited.

Load Cell Design

We design custom load cells using a variety of shapes and sizes, materials and connectors for various applications.

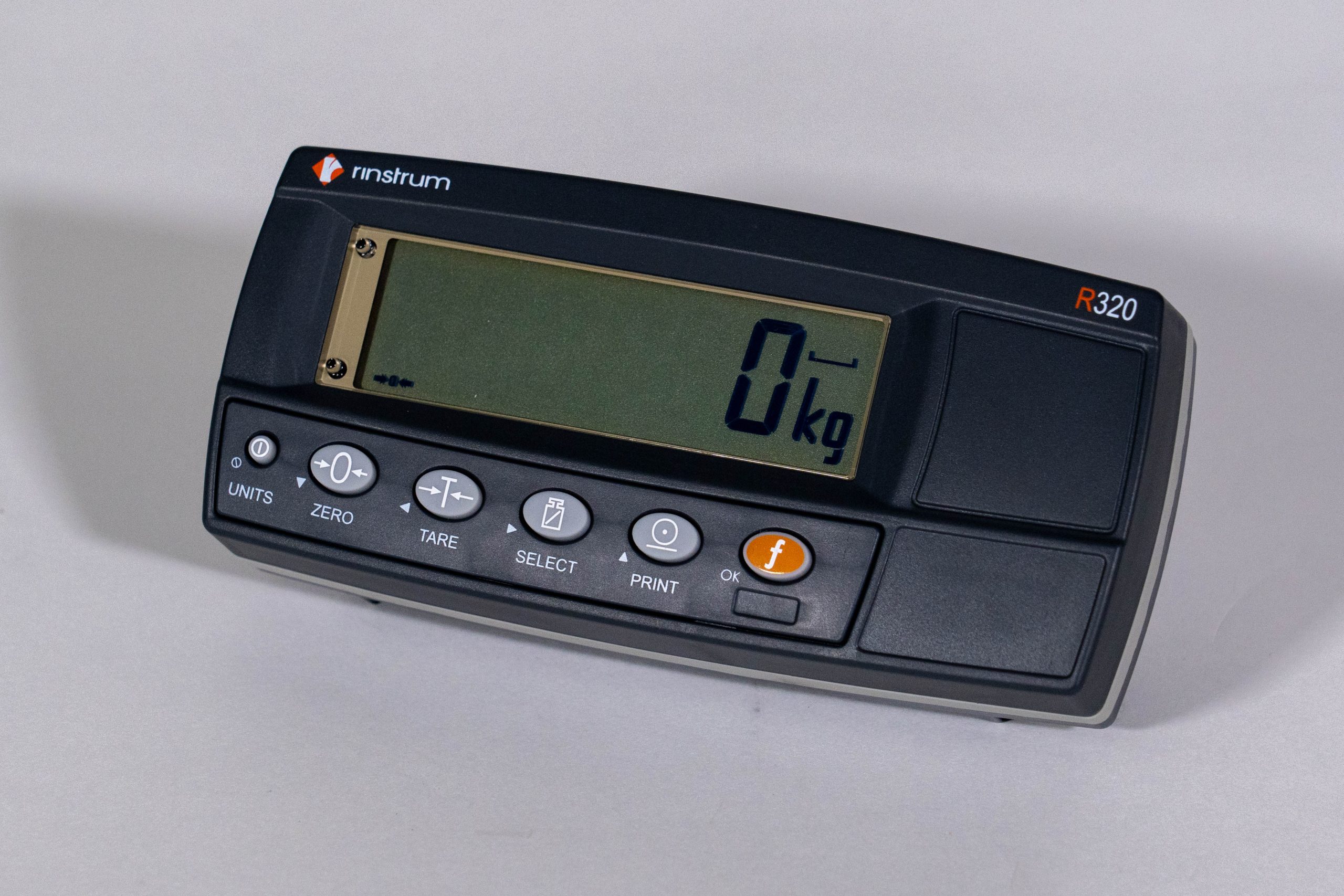

R320 Hand Held Load Indicator

This instrument provides ZERO, TARE and OPTIONAL PEAK HOLD functionality as well as more setup options (eg. serial and setpoints) and printing functionality.

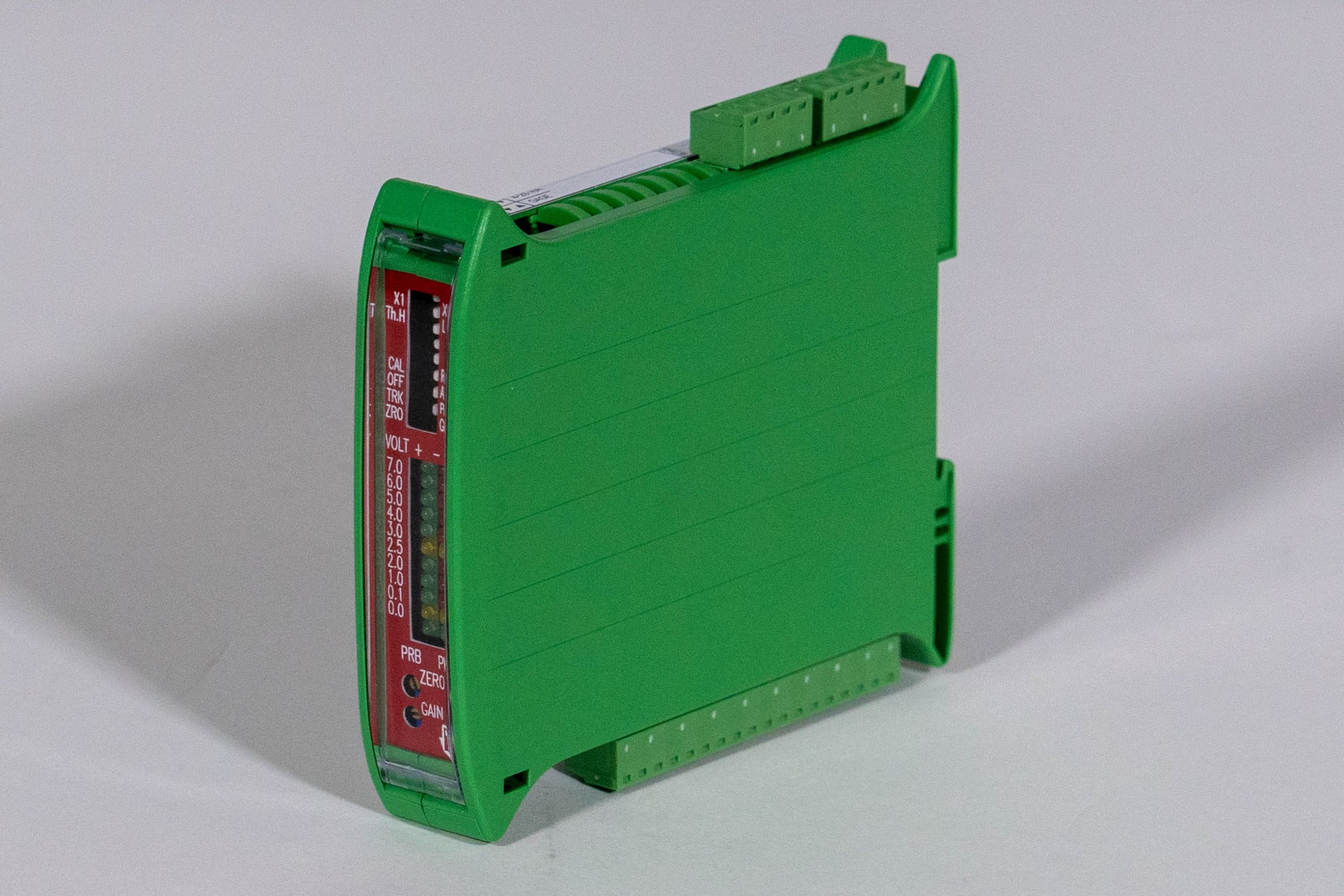

ZT-1

The ZT tonnage load module is designed for critical force measurement applications where accuracy, extreme stability, and dependable noise rejection is essential.

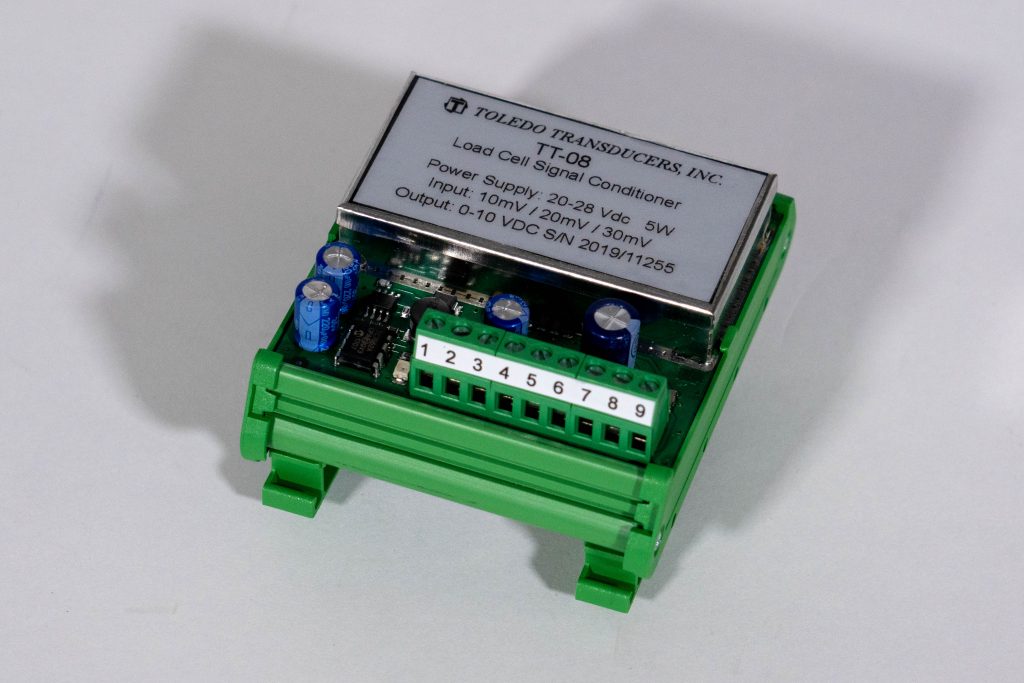

Signal Conditioners

Toledo Transducers calibration laboratory and calibrations are conducted according to ISO/IEC17025.

Load Cell Calibration A2LA Accredited

Toledo Transducers calibration laboratory and calibrations are conducted according to ISO/IEC17025.

Load Cell Database

wdt_ID Name Capacity Width Height Output Type 3D File Link
227 1175M-5K 5000 lbs 2.5 in. 1 in. 2 mV/V Button 1175M-5K
228 SS1009 Family S-Beam Load Cell 40000 lbs 2.750 in. 10.000 in. 3 mV/V S-Beam / Shear beam SS1009-FAMILY
229 SS1080-12KLB 12000 lbs 0.669 in. 1.181 in. 2 mV/V In-Die/Punch Hold SS1080-12KLB
230 SS1108-10KLB 10000 lbs 0.888 in. 0.394 in. 2 mV/V Doughnut SS1108-10KLB
231 SS1108-1KLB 1000 lbs .866 in. .394 in. 1 mV/V Doughnut SS1108-1KLB
232 SS1114-4KLB 4000 lbs 2.00 in. 0.75 in. 1 mV/V Doughnut SS1114-4KLB
233 SS1122-10K 10000 lbs 1.500 in. 2.000 in. 2 mV/V Rod-End/In-Line SS1122-10K
234 SS1122-1K 1000 lbs 1.250 in. 2.000 in. 2 mV/V Rod-End/In-Line SS1122-1K
235 SS1122-20K 20000 lbs 1.500 in. 2.000 in. 2 mV/V Rod-End/In-Line SS1122-20K
236 SS1122-2K 2000 lbs 1.250 in. 2.000 in. 2 mV/V Rod-End/In-Line SS1122-2K
Capacity Type
