Signal conditioning is a transmission method of conveying information using a continuous input signal which varies in amplitude, phase, or some other property into a usable output signal that is proportional to the input.

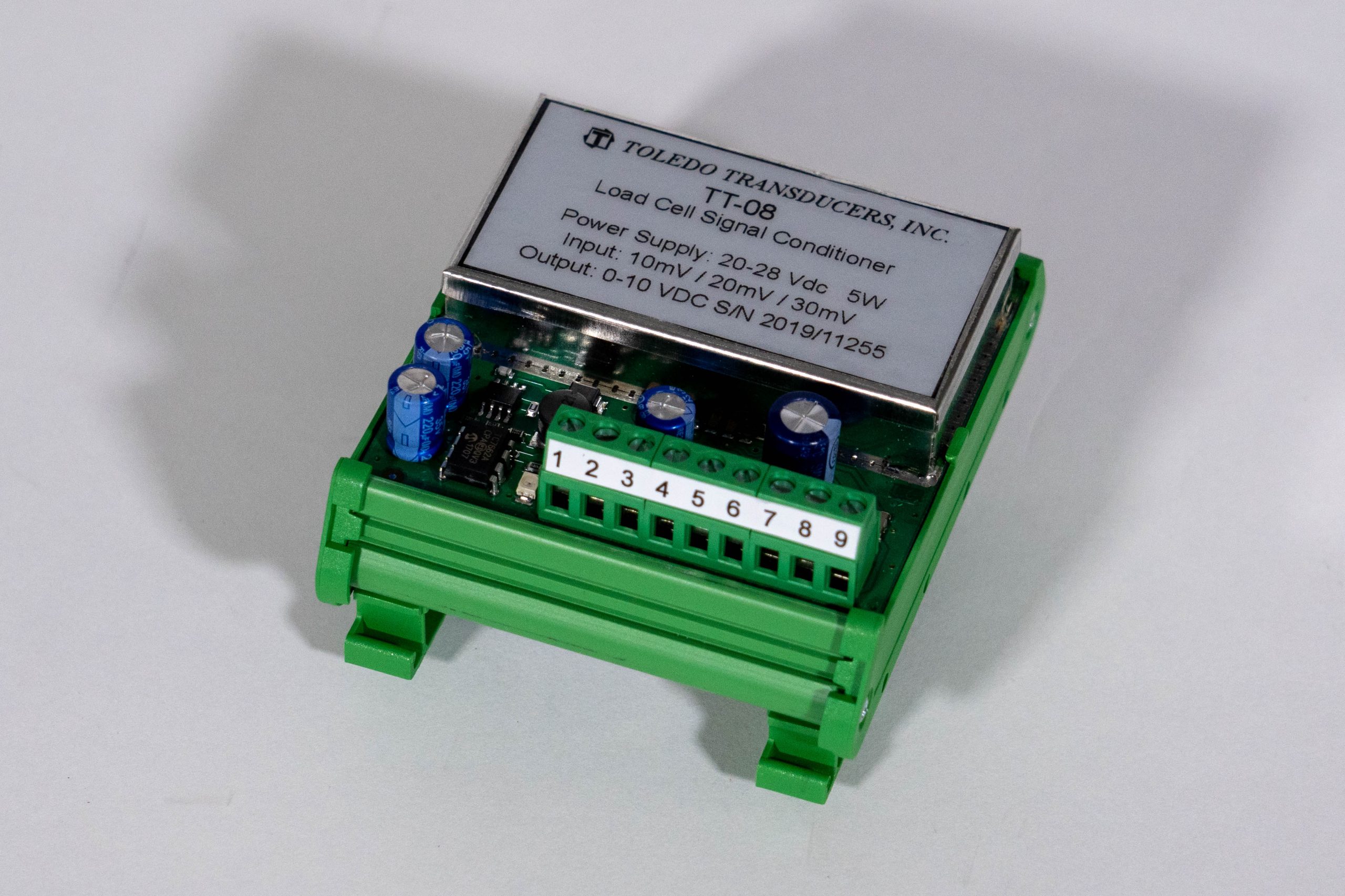

The TT-08 signal conditioner is a din-rail mounted device that senses a physical parameter such as pressure or temperature and generates an output proportional to the measured variable in the standard range, 4-20 mA or 0-10Vdc.

TT-08 signal conditioners are ideal for use on systems having a full-scale range of 10mV, 20mV, or 30mV with minimal tare weight values. Typical applications would be a single force (load cell), pressure transducer or a platform scale.

An integral 9-position terminal strip provides connections for the supply voltage, transducer wiring, and analog output. The input signal range selection is accomplished with a 2-position dipswitch.

The output signal (4-20 mA or 0-10Vdc) selection is performed by TIS moving one or more jumpers to the customers specified output.

  Standard Option
Zero and Full scale via trim-pots
DIN Rail "snap track" mounting
Adjustable analog output filter
Thermal stability
4-20mA or 0-10Vdc selectable output
Description Specification
Power Supply 24 VDC +/-15%
Load Cell
10 Vdc
Load Current 200 mA (max 4 load cells x 350 Ohm)
5 W
Input Signal Selectable, 10 mV, 20 mV, 30 mV
Analog Output 0-10 VDC bipolar, 4-20 mA
Zero Adjustment 20-turn trim-pot (-7%/+3% FS)
Span Adjustment 20-turn trim-pot (+/-5% of FS)
Linearity +/-0.02% of full scale
Analog Filter Adjustable, 270+/-turn trim-pot
Operating Temp.
+14 to +104+/-F (-10 to +40+/-C)
Storage Temp.
-4 to +122+/- F (-20 to +50+/-C)
Thermal Stability 20 ppm/+/-C
Relative Humidity 85% non-condensing
Terminal Blocks pitch 0.196"
Response Time 5 to 250 ms (fixed to 5 ms on output mA)
Connection Screw terminal screw connector 5 mm
  Width Height Depth
Dimensions 3.0" 3.5" 2.5"
Name Format Link
TT-08 Signal Conditioner Manual PDF link-icon
TT-08 Specs PDF link-icon
