Tonnage Monitor Networking

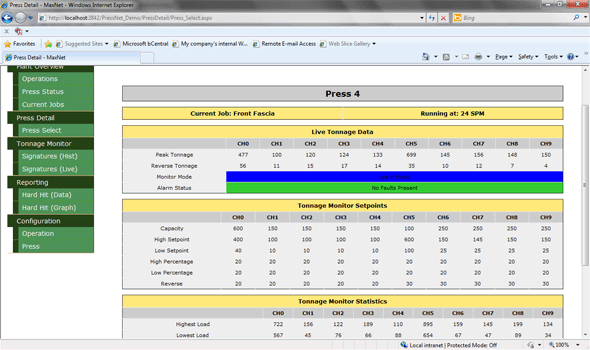

PressNet provides detailed production and tonnage monitor information at your fingertips. The current die/part number, working tonnage, production count, high and low tonnage setpoints, and alarm status can be easily viewed through your web browser.

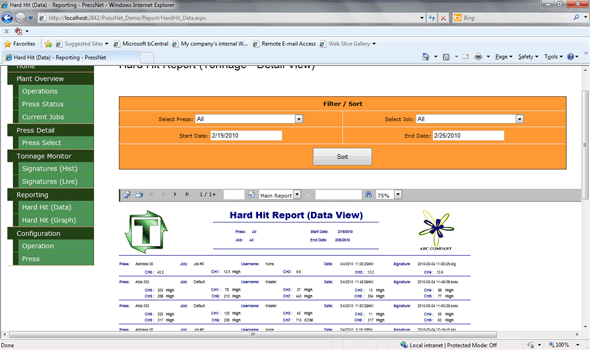

Along with live production data, PressNet provides the ability to run historical hard-hit reports. These reports are generated using Crystal Reports and can be viewed through a web browser. Once generated, these reports are exported to a standard format such as Adobe PDF or Microsoft Word.
A Standard PressNet 5.0 Package Includes:
- Web-based PressNet (Live Data)
- Web-based

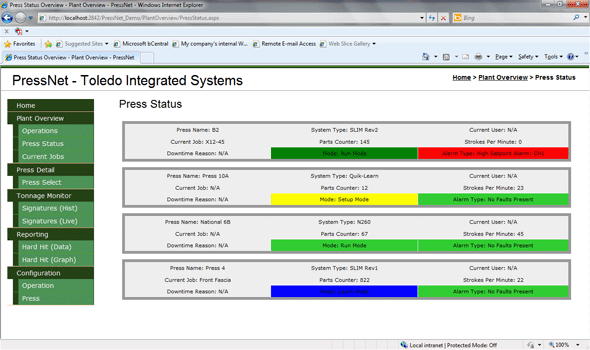

- Monitor Alarm Status
- Current SPM
- Current Loaded Job
- Peak and Reverse Tonnage
- Monitor Setpoints (Capacity, CCM, High, Etc...)
- Monitor Statistics (Number of High Alarms, Etc...)
- Hard-Hit Historical Reporting (Crystal Reports)
- Web-based
- Signature Saved W/Each Hard-Hit
- User, Date, Job and Tonnages Saved To MySQL Database
- Sortable Reporting By User, Press, Job and Dates
- Reports Generated By Crystal Reports
- Reports Saved As PDF or Word Documents

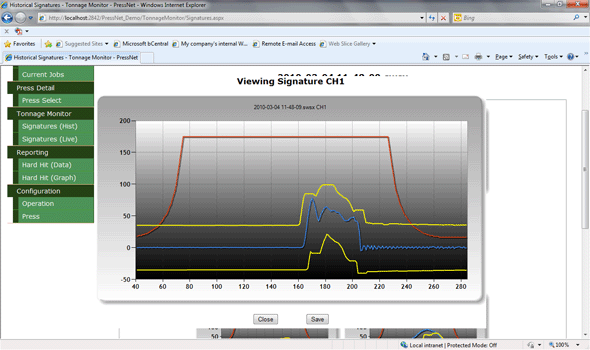

- TT-Graph
- Windows-based
- View Signatures From Any Monitor
- See Details Such As Tonnage and Distance Per Degree

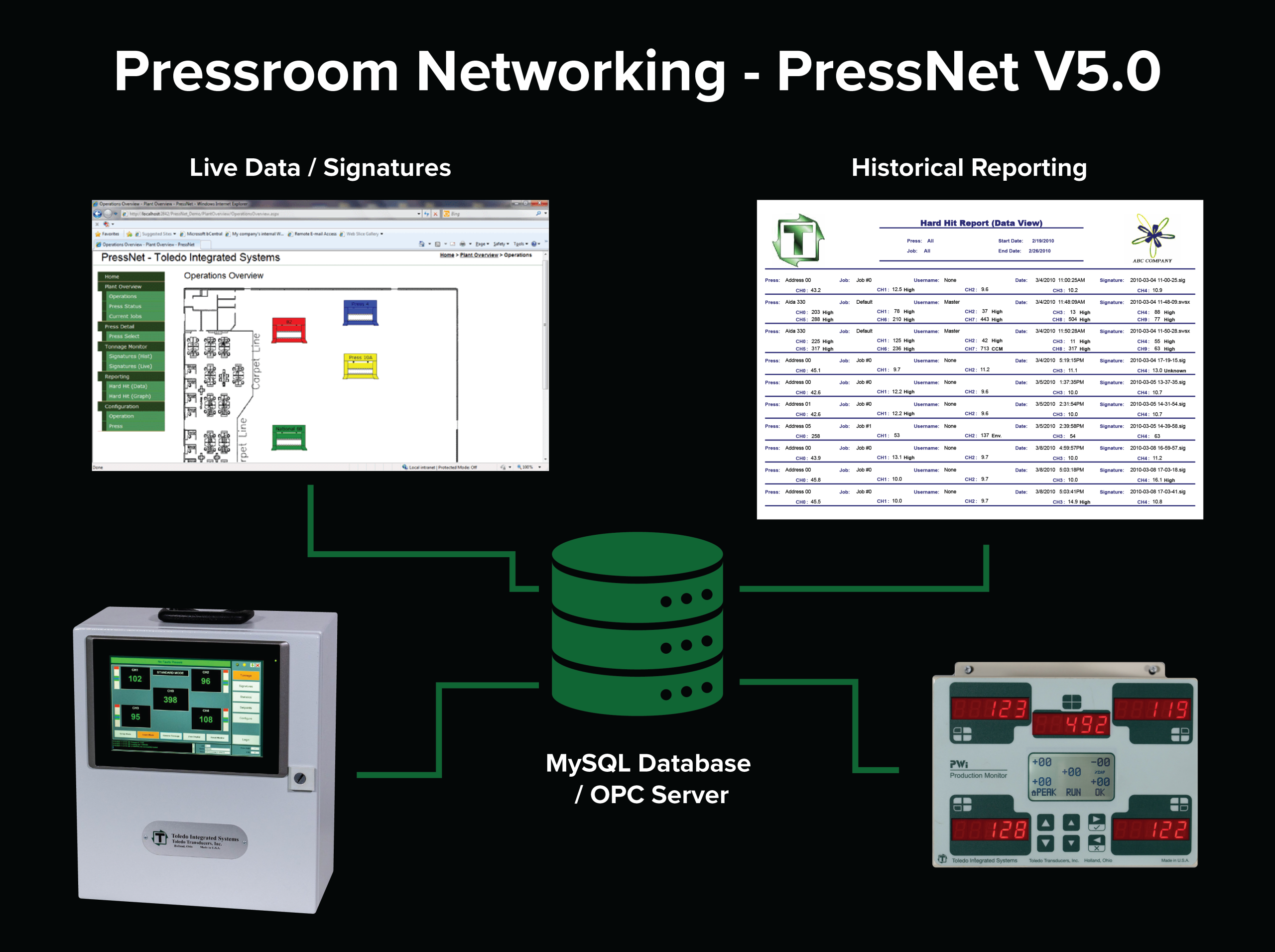

With a web-based solution, PressNet provides the flexibility that you are looking for in a networking package. Once installed, PressNet can be viewed by any user on the same subnet as the PC hosting PressNet. This means the following to you and your employees:
- Minimal Installation (1 PC)
- Users can use their VPN connections to view remotely
- Data is stored in a MySQL database, which can be tied into pre-existing systems
